GameArchive: Pharaoh Instruction Booklet
Williams Logo 16P-504-103
Game No. 504
June, 1981
Pharaoh Logo

This booklet provides game operation, bookkeeping, game adjustment, diagnostic, and self-test procedures for PHARAOH. For installation and special maintenance information refer to the bluecovered game manual. For detailed information refer to Williams Solid State Flipper maintenance Manual.

SPECIAL CONSIDERATIONS WHEN REPLACING CIRCUIT BOARDS

CPU Board

  1. Revision level 7 CPU Boards (batteries located on lower left corner at board) of later boards must be used.
  2. Must be equipped with blue-labeled Flipper ROMs and blue-labeled Game ROMs.
  3. Jumpers W3, W10, W1 1,W14 W17, W19, W20, and W22 must be connected Jumpers W4, W9, W12, W15, W16, W18, W21, and W23 must be removed. With the exception of W25, (Factory Setting Jumper) all other jumpers are not changed.
Driver Board
Must be equipped with zero-ohm resistors or wire jumpers (W9-W16) in place of switch matrix drive series resistors R204-R211.

Sound Board

  1. Model D 8224 required for speech.
  2. Must be jumpered for ROM operation and be equipped with Sound ROM 6. (Jumpers W3, W5, W7, W9, W10, W12, and W15 connected; W2, W4, W6, W8, Wll, and W13 removed).
Power Supply Board
  1. Model D 8345 board required (equipped with relay).
  2. Fuse F4 (20A SB) for flipper solenoids and magnets must be installed.
Display Boards
Model C 8363 Master Display and 7-digit Slave Displays required.

Optional Speech Module
Requires 5T5041 (IC7), 5T5042 (IC5), 5T5043 (IC6), and 5T5044 (IC4) Speech ROMs.

GAME OPERATION
*Indicates adjustable features.
Game Over Mode - Turn game ON; player I score shows 00; all player scores alternate the high score to date, Game Over lamps light. All playfield lamps cycle in attract mode.

Credit Posting - Insert coins; sound produced, number of credits displayed. If maximum credits* exceeded by coin or high score to date, credits are posted correctly, coin lockout,de-energizes until remaining credits are below maximum. No credits may be won and coins are rejected while lockout is deenergized.

Game Start - Two balls must be resting on ball ramp or ball shooter switches (maximum of one ball in ball shooter trough) before game will start. Push credit button, startup tune played, ball served, credit display reduced by 1, player 1 score flashes 00 until first scoring switch is made, ball in play shows 1. Pushing credit button before ball 2 displayed allows additional players.

Multi-Ball and Magna-Save are trademarks of Williams Electronics, Inc.

Bonus Advance - One advance for each drop target and for bottom inside rollovers. Three advances for completing a lower drop target 3-bank, completing matching targets on the upper 3-banks, or ? lanes when not lit. When lit, ? lanes can award random bonus advances. With maximum bonus (49,000), instead of a bonus advance, 10,000 is scored. Completing both lower 3-banks lights Hidden Tomb arrow to collect IX bonus. Bottom inside rollovers and Hidden Tomb flash Bull's-Eye Targets; making target while flashing advances bonus multiplier (2X, 3X, 5X). Making ? lane when lit can advance bonus multiplier.

P-H-A-R-A-O-H - Making target in upper drop target 3-bank lights target arrow and flashes associated arrow in the other 3-bank. Completing flashing arrow(s) advances lighting of P-H-A-R-A-O-H. Spotting letter R* lights eject hole lock lamp for possible Multi-Ball play. Completing PHARAOH lights Slaves Tomb and Hidden Tomb alternately for possible Extra Ball. Making captive ball shot collects 5,000 for each lit letter. When letters are flashing, the Captive Ball shot collects 3X or 5X the lit value.

Stop & Score - Countdown from 3X or 5X of lit PHARAOH value is initiated in another player display by making Hidden Tomb (3X) or Slaves Tomb (5X). Starting Stop & Score also flashes the lit letters in PHARAOH for the captive ball to collect 3X or 5X the lit value. As the countdown is made, the eject hole lamps flash. Making an eject hole while flashing stops the countdown and the score remaining in the display is collected.

Magna-Save Feature - Making drop targets in the lower drop target 3-banks advances lighting of associated (left or right) magna-units lamps. Up to seven timing units may be accumulated. Holding in a Magna Save button on the side of the cabinet energizes the corresponding magnet.

Multi-Ball Play: Spotting letter R* in PHARAOH lights the eject hole lock lamps. Making an eject hole at this time locks up the ball and initiates 2-ball, Multi-Ball play. Locked ball is released after time interval or certain scoring feature occurs.

Bonus Ball - With two or more players, the player with the highest score is awarded a bonus ball*. Both balls are released and play is allowed for 25* seconds with 2X scoring. There is no Playfield Extra Ball feature during the bonus ball. Extra balls won from a Special or replay score during bonus ball are awarded as additional bonus balls.

Memory - Magna-unit lamps, bonus multipliers* until 5X is lit, and Extra Ball When Lit lamps.

Tilt - Ball in play tilted on first closure of ball roll tilt and third* closure of plumb bob and playfield tilts. Slam tilt returns game to game over.

End of Game - Match Digits* appear in ball in play display, *credit awarded for match. Exceeding high score to date awards *three credits. Match, High Score to Date, and Game Over sounds made as appropriate. A new game cannot be started with both balls resting in the ball shooter trough; excess balls must be returned to the playfield and rest on the ball-ramp switches.

With Speech Module, the following phrases are produced.
Attract Mode, randomly:Dare you enter the tomb of the mighty PHARAOH?
Who dares enter the mighty PHARAOH's hidden chamber?
Game Start, add players; randomly:You may enter the tomb.
Behold the PHARAOH's chambers.
You dare enter PHARAOH's tomb.
Beware of cobras!
Making Hidden Tomb or Slaves Tomb Shooters, randomly:Behold the PHARAOH's chambers.
Enter the hidden tomb.
Behold the hidden tomb.
Enter the PHARAOH's chambers.
? Lane with Magna-Save button in:You Failed.
Making a lower kicker, on occasion:Doomed.
Making upper kicker, on occasion:RA (or) Hail.
Making left or right inside rollovers, often:Cobras
Win Extra Ball:Hail, Hail, RA, RA, RA.
Win credit from replay or special: You may return to PHARAOH's treasures.
You may return to PHARAOH's tomb.
Matching. randomly: Behold the PHARAOH's treasure.
Hail to mighty PHARAOH.
High Score to Date: Game Over: You hold PHARAOH's treasure.
Dare you return to mighty PHARAOH's tomb?

BOOKKEEPING AND GAME EVALUATION

(Functions 01-17)
  1. Set AUTO-UP/ MANUAL-DOWN switch to AUTO-UP and depress ADVANCE pushbutton. Test 04 is indicated in the credits display, Function 00 in Match display, and Game Identification in Player 1 display.
  2. Operate the ADVANCE pushbutton to display Functions 01 thru 04 on the Match display (See Table 1) and record the corresponding totals (number of coins and total paid credits) from the Player I display. (To review a total that has been advanced past, set switch to MANUAL-DOWN and operate the ADVANCE pushbutton).
  3. Operate the ADVANCE pushbutton to display Functions 05, 06, and 07 in the Match display and record the corresponding free credit totals from the Player I display.
  4. Operate the ADVANCE pushbutton to display Function 08 in the Match display. 1 otal credits is indicated in the Player I display, total free credits in the Player 2 display, and percentage of i free credits in the Player 4 display.
  5. Operate the ADVANCE pushbutton to display Function 09 thru 12 in the Match display and record the corresponding totals from the Player I display.
  6. Operate the ADVANCE pushbutton to display Functions 13 thru 17 in the Match display and record the corresponding totals from the Player 2 display.
  7. With switch set to MANUAL-DOWN operate ADVANCE to display Function 50 in the Match Display. From Function 50 you can return to game over or zero audit totals and return to game over. Perform step 8.a. or 8.b. as desired.
  8. a. To return to game over, set the switch to AUTO-UP and depress ADVANCE.
    b. To zero audit totals and return to game over set switch to AUTO-UP, operate the credit button to display 35 in the Player 1 display, and depress ADVANCE.
Table 1. Audit Totals
DESCRIPTION
FUNCTION PLAYER 1 PLAYER 2 PLAYER 4
00 Game Identification (2504 1) -- --
01 Coins, Left chute
(closest to coin door hinge)
-- --
02 Coin, center chute -- --
03 Coin, right chute -- --
04 Total Paid Credits -- --
05 Special Credits -- --
06 Replay Score Credits -- --
07 Match Credits -- --
08 Total Credits Free Credits % Free Credits
09 Total Extra Balls -- --
10 Ball Time in Minutes -- --
11 Total Balls Played -- --
12 Current High Score to Date -- --
13 Backup High Score to Date High Score to Date
Credits Awarded
--
14 Replay 1 Score Times exceeded --
15 Replay 2 Score Times exceeded --
16 Replay 3 Score Times exceeded --
17 Replay 4 Score Times exceeded --

GAME ADJUSTMENT PROCEDURE

(Functions 13-41)
Coin door must be open to change settings.
  1. Set AUTO-UP/ MANUAL-DOWN switch to AUTO-UP and depress ADVANCE pushbutton. Test 04 is indicated in the Credits display, Function 00 in Match display, and game identification in Player I display.
  2. To raise Function number in Match display, operate ADVANCE pushbutton with switch set to AUTO-UP. To lower Function number operate ADVANCE with it set to MANUAL-DOWN.
  3. With desired Function indicated in Match display, raise value in player 1 display by operating credit button with switch set to AUTO-UP; lower value by operating credit button with it set to MANUAL DOWN. Value left in Player 1 display is new setting. For values see Table 2 and (for pricing) Table 3.
  4. Repeat steps 2 and 3 until all required adjustments have been made.
  5. Operate ADVANCE until Function 50 is indicated in Match display. From Function 50 you can return to game over or restore factory settings. Perform step 6 or 7 as desired.
  6. To return to game over, depress ADVANCE with switch set to AUTO-UP.
  7. To restore factory settings and zero audit totals:
    a. Operate Credit button with switch set to AUTO-UP until 45 is indicated in Player 1 Display.
    b. Depress ADVANCE. The game returns to Test 04, Function 00.
    c. Set switch to MANUAL-DOWN and depress ADVANCE to indicate Function 50.
    d. Set Switch to AUTO-UP and depress ADVANCE.

RESETTING HIGH SCORE TO DATE

  1. Using game adjustment procedure, set Function 13 to the desired reset value.
  2. Depress HIGH SCORE RESET pushbutton.

FACTORY AUDIT TOTALS

(Functions 42-49)
The following factory audit functions are assigned:
42 - Total times Multi-ball achieved
43 - Total times Stop & Score started
44 - Total times Stop & Score collected
45 - Total times Bonus collected from Hidden Tomb
46-49- Not Used

Table 2. Game Adjustments
FUNCTION DESCRIPTION NOTES *FACTORY SETTING
13 Backup High Score to Date [HSTD Credits Awarded] 1 2,300,000
14 Replay 1 Score [Times exceeded] 2 700,000
15 Replay 2 Score [Times exceeded] 2 1,500,000
16 Replay 3 Score [Times exceeded] 2 0
17 Replay 4 Score [Times exceeded] 2 0
18 Maximum Credits 3 30
19 Standard and Custom Pricing Control (00-08) 4 01/02
20 Left Coin Slot Multiplier 4 01/09
21 Center Coin Slot Multiplier 4 04/45
22 Right Coin Slot Multiplier 4 01/18
23 Coin Units Required for Credit 4 01/05
24 Coin Units Bonus Point 4 00/45
25 Minimum Coin Units 4 00
26 Match: 00 = Match ON; 01 = Match OFF - 00
27 Special: 00 = Awards Credit; 01 = Awards Extra Ball or
Bonus Ball, 02 = Awards Points
- 01
28 Replay Scores: 00 = Awards Credit; 01 = Awards Extra Ball or Bonus Ball - 00
29 Maximum Plumb Bob Tilts - 03
30 Number of Balls (03 or 05) - 03
31 Lower Drop Target 3-Bank Timing; 00 (conservative) to 09 (liberal) - 05
32 Bull's-Eye (Bonus X) Timing, 00 (conservative) to 09 (liberal) - 05
33 Bonus Ball Timing 01-99 Seconds (00 = disabled) - 25
34 Attract Mode Sounds/? Lane Special; 01 (conservative) to 09 (liberal)
(With 11 to 19 attract mode sounds disabled)
- 01
35 Stop & Score Timing; 01 (conservative) to 09 (liberal) - 05
36 Multi-Ball possible at PHARAOH letter:
03 = PHA. 04 = PHAR, 05 = PHARA
- 04
37 Spot PHARAOH initially: 00 = None, 01 = P. 02 = PH, 03 = PHA - 02
38 Bonus X Memory: 00 = memory, 01 - no memory - 00
39 Background Sound/Bell: 00 = sound/bell
01 = no sound/bell, 10 = sound/no bell, 11 = no sound/no bell
- 00
40 High Score Credits 1 03
41 Maximum Extra Balls at one time (00 = No Extra Ball) - 04

*Second Factory Setting value is with jumper W25 on GPU Board connected.
[ ] Description in brackets shown in Player 2 Display.
  1. Function 13 may be set to any multiple of 100,000 points. Setting Function 40 to zero with Function 13 set to any score but zero permits the High Score to Date feature to operate but no credits are awarded.
  2. Functions 14-17 (Replay Scores) may be set to any multiple of 100,000 points. Setting a function to Zero disables the replay score point.
  3. Setting Maximum Credits (Function 18) to zero places the game in a free play mode.
  4. With Function 19 set to 00, Functions 20-25 must be set manually. Refer to Table 2 for eight standard pricing schemes (selected by values of 01-08 for Function 19) and custom pricing values.

RECOMMENDED SCORE LEVELS

CREDIT GAMES
3-Ball: *700,000; 1,500,000
5-Ball: 1,000,000; 2,000,000
EXTRA BALL
3-Ball: 500,000
5-Ball: 700,000

*Factory Setting

Table 3. Standard and Custom Price Settings
COIN DOOR
MECHANISM
CREDITS FUNCTION
19 20 21 22 23 24 25
Twin-Quarter
Quarter, Dollar, Quarter
1/25¢, 3/50¢, 7/$1
1/25¢, 3/50¢, 7/$1 coin only
1/25¢, 7/$1 coin only
1/25¢, 3/50¢, 6/$1
1/25¢, 6/$1 coin only
1/25¢, 5/$1
2/50¢, 5/$1
1/25¢, 5/$1 coin only
·1/25$, 4/$1
2/50¢, 4/$1
·1/50, 2/75¢, 3/4 x 25¢
 4/$1 or 5 x 24¢
1/50¢,3/$1, 4/$1.25
1/50¢, 3/$1, 7/$2
·1/50e, 3/$1, 6/$2
1/50¢
00
00
00
00
00
00
00
00
01
00
05

00
00
03
00
03
03
01
01
01
01
01
01
01
01
03

03
12
01
01
12
14
07
04
06
04
04
05
04
04
15

12
48
04
04
03
03
01
01
01
01
01
01
01
01
03

03
12
01
01
02
02
01
01
01
01
01
01
01
01
04

04
14
02
02
12
00
00
02
00
04
04
00
00
00
15

15
96
04
00
00
00
00
00
00
00
02
00
00
02
00

00
18
00
00
1DM, 5DM, 2DM·1/1DM, 3/2DM, 10/5DM
2/1DM, 5/2DM, 14/5DM
02
00
09
13
45
65
18
26
05
05
45
65
00
00
20-Cent, 50-Cent1/20¢, 3/50¢00060015050000
1 Franc, 10 Franc, 5 Franc·1/2F, 3/5F only, 8/10F only04011606020000
25 Cent,
1 Guilder
·1/25¢, 4/1G
1/25¢, 5/1G
06
00
01
01
00
00
04
04
01
01
00
04
00
00
Twin 100 Yen2/100Y00020002010000
1 Franc or
Twin-1 Franc
1/1F, 3/2F
1/1F
00
00
01
01
01
01
01
01
01
01
02
00
00
5 Franc,
10 Franc
·1/5F, 2/10F
·1/10F
07
08
01
01
00
00
02
02
01
02
00
00
00
00
Twin-2 Franc·1/2F03010401010000
10, 20 Franc·1/10F, 2/20F07010002010000
Twin-1 Sucre1/3S, 2/5S00020002050000
· Indicates standard price setting by adjusting only Function 19. For other price settings, set Fuction 19 to 00 and set Functions 20 through 25 to the values indicated in the chart

DIAGNOSTIC PROCEDURES

Display Digits Test
  1. Set AUTO-UP/MANUAL-DOWN switch to MANUAL-DOWN and depress ADVANCE. Displays should indicate all 0's.
  2. Set the switch to AUTO-UP. Displays should sequence from all 0's thou all 9's. Comma segments should come on when odd digits are displayed.
  3. To stop cycling, set switch to MANUAL-DOWN. Operate ADVANCE pushbutton to step tests one number at a time. Set switch to AUTO-UP to resume cycling.
Sound Test
  1. From Display Digits Test depress ADVANCE with the switch set to AUTO-UP. Test 00 should be indicated in the Credits display and the Match display should sequence from 00 thou 06. Different sounds should be produced for 00, 01, 02, 03, and 04.
  2. To continuously pulse a single sound, set the toggle switch to MANUAL-DOWN. Operate ADVANCE pushbutton to sequence through sounds one at a time. Set toggle switch to AUTO-UP to resume sequencing.
Lamp Test
From Sound Test depress ADVANCE with the switch set to AUTO-UP Test 01 should be indicated in the Credits display and all multiplexed lamps should flash.

Figure 1. Lamp Matrix


ROW
COLUMN

1
YEL-BRN
2J5-8
2
YEL-RED
2J5-9
3
YEL-ORN
2J5-6
4
YEL-BLK
2J5-7
5
YEL-GRN
2J5-3
6
YEL-BLU
2J5-5
7
YEL-VIO
2J5-1
8
YEL-GRY
2J5-2

1
RED-
BRN
2J7-1
Same
Player
Shoots
Again(Backbox)
Left
Magnet
Bottom
Arrow
2X
Scoring
"A" Slaves Tomb
Extra Ball
When Lit
"O" "1"
Bonus
"9"
Bonus

2
RED-
BLK
2J7-2
Ball
in
Play
Left
Magnet,
2+
Arrow
Hidden Tomb
Collect
Bonus
"O" Upper
Eject
Hole
Arrow
"H" "2"
Bonus
"10"
Bonus

3
RED-
ORN
2J7-3
Tilt Left
Magnet
4+
Arrow
Lower
Center
3-Bank
"H" Lower
Eject
Hold
Arrow
Extra Ball
When Lit
Hidden Tomb
"3"
Bonus
"20"
Bonus

4
RED-
YEL
2J7-4
Game
Over
Right
Magnet
Bottom
Arrow
Lower
Center
3-Bank
Upper
Bull's-Eye
Target
"P"
Backbox
Slaves Tomb
General
Illumination
"4"
Bonus
"30"
Bonus

5
RED-
GRN
2J7-5
Match Right
Magnet
2+
Arrow
"P"
(Playfield)
Upper Left
3-Bank
Bottom
Arrow
"H" Captive
Ball
General
Illumination
"5"
Bonus
"40"
Bonus

6
RED-
BLU
2J7-6
High
Score
to
Date
Right
Magnet
4+
Arrow
"H" Upper Left
3-Bank
Center
Arrow
"A" Upper
Center
3-Bank
Left Arrow
"6"
Bonus
2X

7
RED-
VIO
2J7-9
Bonus
Ball
Timer
Left
? Lane
"A" Upper Left
3-Bank
Top
Arrow
"R" Upper
Center
3-Bank
Center Arrow
"7"
Bonus
3X

8
RED-
GRY
2J7-8
Same
Player
Shoots Again
(Playfield)
Right
? Lane
"R" Lower
Bull's-Eye
Target
"A" Upper
Center
3-Bank
Right Arrow
"8"
Bonus
5X

Solenoid Test

  1. From Lamp Test depress ADVANCE with the switch set to AUTO-UP. Test 02 should be indicated in the Credits display. Display sequences from 01 thru 25. Corresponding solenoids 01 thru 24 are pulsed. Flipper relay is de-energized with subtest 25.
  2. To continuously pulse a single solenoid set switch to MANUAL-DOWN. Operate ADVANCE pushbutton sequence through the solenoids one at a time. Set toggle switch to AUTO-UP to resume sequencing.

Figure 2. Playfield Solenoid Locations and Solenoid Chart
Solenoid Locations Sol.
No. Function

01 Ball Release
02 Ball Ramp Thrower
03 Backbox Gen. Illum. Relay
04 Upper Playfield Gen. Illum. Relay
05 Lower Playfield Gen. Illum. Relay
06 Slaves Tomb Ball Shooter
07 Hidden Tomb Ball Shooter Relay
08 Not Used
09 Upper Left Drop Targets Reset
10 Upper Center Drop Targets Reset
11 Lower Center Drop Targets Reset
12 Lower Right Drop Targets Reset
13 Upper Eject Hole
14 Lower Eject Hole
15 Bell
16 Coin Lockout
17 Upper Kicker
18 Left Kicker
19 Right Kicker
20 Not Used
21 Left Magnet Relay
22 Right Magnet Relay

Table 4. Solenoid Connections
SOL.
NO.
FUNCTION WIRE
COLOR
CONNECTIONS DRIVER
TRANS.
SOLENOID
PART NO.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17*
18*
19*
20
21*
22*
*

*

*

*

Ball Release
Ball Ramp Thrower
Backbox Gen. Illum. Relay
Upper Playfield Gen. Illum.
Lower Playfield Gen. Illum.
Slaves Tomb Ball Shooter
Hidden Tomb Ball Shooter Relay
Not Used
Upper Left Drop Targets Reset
Upper Center Drop Targets Reset
Lower Center Drop Targets Reset
Lower Right Drop Targets Reset
Upper Eject Hole
Lower Eject Hole
Bell
Coin Lockout
Upper Kicker
Left Kicker
Right Kicker
Not Used
Left Magnet
Right Magnet Relay
Lower Right Flipper

Upper Right Flipper

Lower Left Flipper

Upper Left Flipper

GRY-BRN
GRY-RED
GRY-ORN
GRY-YEL
GRY-GRN
GRY-BLU
GRY-VIO
GRY-BLK
BRN-BLK
BRN-RED
BRN-ORN
BRN-YEL
BRN-GRN
BRN-BLU
BRN-VIO
BRN-GRY
BLU-BRN
BLU-RED
BLU-ORN
BLU-YEL
BLU-GRN
BLU-BLK
BLU-VIO

BLK-YEL

BLU-GRY

BLK-BLU

2P11-4, 8P3-1, 8P6-11
2P11-5, 8P3-2, 8P6-12
2P11-7, 9P2-2
2P11-8, 8P3-4
2P11-9, 8P3-5, 8P6-13
2P11-3, 8P3-6
2P11-2, 8P3-7, 8P6-14
2P11-1, 8P3-8
2P9-9, 8P3-9
2P9-7, 8P3-10
2P9-1, 8P3-11, 8P6-15
2P9-2, 8P3-12, 8P6-16
2P9-3, 8P3-13
2P9-4, 8P3-14, 8P6-17
2P9-5, 7P1-17
2P9-6, 7P1-18, 7P2-4
2P12-7, 8P3-17
2P12-4, 8P3-18, 8P6-7
2P12-3, 8P3-19, 8P6-8
2P12-6, 8P3-20
2P12-8, 8P3-21, 8P6-9
2P12-9, 8P3-22, 8P6-10
7P1-8, 8P3-34, 8P6-3

7P1-31, 8P3-33

7P1-10, 8P3-32, 8P6-4

7P1-30, 8P3-31

Q15
Q17
Q19
Q21
Q23
Q25
Q27
Q29
Q31
Q33
Q35
Q37
Q39
Q41
Q43
Q45
Q2
Q4
Q6
Q8
Q10
Q12
--

--

--

--

SA-23-850-DC
SG-23-850-DC
5580-09613-00
5580-09613-00
5580-09613-00
SG-23-750-DC
5580-0961 3-00
--
SA3-23-850-DC
SA3-23-850-DC
SA3-23-850-DC
SA3-23-850-DC
SG-23-850-DC
SG-23-850-DC
SM-29-1000-DC
SM-35-4000-DC
SG-23-850-DC
SG-23-850-DC
SG-23-850-DC
--
5580-09613-00
5580-09613-00
SFL-19-400/
30-750-DC
SFL-19-400/
30-750-DC
SFL-19-400/
30 -750-DC
SFL-19-400/
30-750-DC
*NOTES:
  1. Contacts of solenoid 7 switch ground to Hidden Tomb solenoid (Part No. SG-23-550-DC). Contacts of solenoids 21 - and 22 switch ground to magnets (Part No. 20-9297).
  2. Special switch connections for solenoids 17 through 19 are as follows:
      17--ORN-BRN--2P13-5, 8P3-24
      18--ORN-RED--2P13-3, 8P3-25, 8P6-5
      19--ORN-BLK--2P13-2, 8P3-26, 8P6-6
  3. Flipper button connections are as follows:
      Right--ORN-VIO--2P12-1, 7P1-7
      Left--ORN-GRY--2P12-2, 7P1-9
  4. Typical wiring for solenoids and special switches:

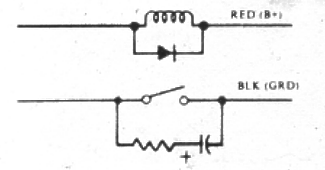

Typical Solenoid Wiring

Switch Test
  1. From Solenoid Test depress ADVANCE with the switch set to AUTO-UP. Test 03 should be indicated in the Credits display and any stuck switches in the Master display. As stuck switch(es) is displayed a sound is produced. The display continuously cycles through the stuck switches and as they are opened, the number is removed from the sequence. When all switches are open, the Match display is blank and the sounds stop.
  2. If all switches in a row are displayed, first verify that all are open and then check for a short to ground on the row wire.
  3. Operate switches, a sound is produced and switch number is momentarily indicated in the ball in play display. If two switches in a row are indicated with one switch closed, check for a short between the column wires; for multiple indication check column wire for short to ground. If two switches in a column are indicated with one switch closed, check for short between row wires.
  4. If proper indications are obtained in Test 03 but matrix problem is suspected in game play, disconnect lamp connectors 2P5 and 2P7. Recheck in game play. Perform CPU Self-Test if problem remains. If problem is cleared, check for short between lamp matrix and jet bumper mounting brackets.
  5. Shorted diodes can cause "rectangle" switch matrix problems as follows: The center and top targets in the lower center 3-bank down (switches 26 and 27), and with a ball entering the Hidden Tomb Shooter making switch 43, a shorted diode at switch 27 would cause switch 42 Playfield Tilt to be indicated. Note that the "rectangle" is always completed with an incorrect switch diagonally opposite from the switch with the shorted diode.



Figure 3. Playfield Switch Locations and Switch Chart
Switch Locations Switch
No. Function (Score*)

01  Plumb Bob Tilt
02  Ball Roll Tilt
03  Credit Button
04  Right Coin Switch
05  Center Coin Switch
06  Left Coin Switch
07  Slam Tilt
08  High Score Reset
09  Left Magnet Button
10  Right Magnet Button
11  Not Used
12  Not Used
13  Left Inside Rollover (10,000)
14  Right Inside Rollover (.10,000)
15  Left ? Lane Rollover (5,000/Mystery)
16  Right ? Lane Rollover (5,000/Mystery)
17  Upper Left 3-Bank Bottom Target (3,000)
18  Upper Left 3-Bank Center Target (3,000)
19  Upper Left 3-Bank Top Target (3,000)
20  Upper Kicker (10/ 110)
21  Upper Center 3-Bank Left Target (3,000)
22  Upper Center 3-Bank Center target (3,000)
23  Upper Center 3-Bank Right Target (3,000)
24  Left Kicker (10)
25  Lower Center 3-Bank Bottom Target (3,000)
26  Lower Center 3-Bank, Center (3,000)
27  Lower Center 3-Bank, Top (3,000)
28  Upper Bull's-Eye Target (5,000/ 15,000)
29  Lower Right 3-Bank, Top Target (3,000)
30  Lower Right 3-Bank, Center Target (3,000)
31  Lower Right 3-Bank, Bottom Target (3,000)
32  Lower Bull's-Eye Target (5,000/ 15,000)
33  Slaves. Tomb Shooter (20,000)
34  Upper Eject Hole (7,000)
35  Lower Eject Hole (7,000)
36  Outhole
37  Not Used
38  Ball Ramp Left Switch
39  Ball Ramp Right Switch
40  Ballshooter Trough
41  Captive Ball (5,000/5,000 per lit letter)
42  Playfield Tilt
43  Hidden Tomb Shooter (20,000)
44  Right Kicker (10)

*AII scores are doubled for 2X Scoring.

Mystery for switches 15 and 16 (awarded when lit) is random bonus advances, bonus multiplier, random points, or special.

Second value for switch 20 is randomly scored.

Second value for switches 28 and 32 is scored when lit with 5X bonus multiplier.

With full bonus, 10,000 is awarded instead of each bonus advance.

Figure 5. Switch Matrix



ROW
COLUMN

1
GRN-BRN
2J2-9
2
GRN-RED
2J2-8
3
GRN-ORN
2J2-7
4
GRN-YEL
2J2-6
5
GRN-BLK
2J2-5
6
GRN-BLU
2J2-3
7
GRN-VIO
2J2-2
8
GRN-GRY
2J2-1

1
WHT-
BRN
2J3-9

Plumb
Bob
Tilt


1

Left
Magnet
Button


9

Upper Left
3-Bank
Bottom
Target

17

Lower
Center 3-Bank
Bottom
Target

25

Slaves
Tomb
Shooter


33

Captive
Ball



41

Not
Used



49

Not
Used



57

2
WHT-
RED
2J3-8

Ball
Roll
Tilt



2

Right
Magnet
Button



10

Upper Left
3-Bank
Center
Target


18

Lower
Center 3-Bank
Center
Target

26

Upper
Eject
Hole



34

Playfield
Tilt




42

Not
Used




50

Not
Used




58

3
WHT-
ORN
2J3-7

Credit
Button




3

Not
Used




11

Upper
Left
3-Bank
Top
Target

19

Lower
Center
3-Bank
Top
Target

27

Lower
Eject
Hole


35

Hidden
Tomb
Shooter



43

Not
Used




51

Not
Used




59

4
WHT-
YEL
2J3-6

Right
Coin
Switch

4

Not
Used


12

Upper
Kicker


20

Upper
Bull's-Eye
Target


28

Outhole



36

Right
Kicker


44

Not
Used



52

Not
Used



60

5
WHT-
GRN
2J3-5

Center
Coin
Switch


5

Left
Inside
Rollover


13

Upper
Center
3-Bank
Center
Target

21

Lower
Right
3-Bank
Top
Target

29

Not
Used



37

Not
Used



45

Not
Used



53

Not
Used



61

6
WHT-
BLU
2J3-4

Left
Coin
Switch


6

Right
Inside
Rollover


14

Upper
Center
3-Bank
Center
Target

22

Lower
Right
3-Bank
Center
Target

30

Ball
Ramp
Left
Switch

38

Not
Used



46

Not
Used



54

Not
Used



62

7
WHT-
VIO
2J3-3

Slam
Tilt



7

Left
? Lane
Rollover


15

Upper
Center
3-Bank
Right
Target

23

Lower
Right
3-Bank
Bottom
Target

31

Ball
Ramp
Right
Switch

39

Not
Used



47

Not
Used



55

Not
Used



63

8
WHT-
GRY
2J3-1

High
Score
Reset

8

Right
? Lane
Rollover

16

Left
Kicker


24

Lower
Bull's-Eye
Target

32

Ball
Shooter
Trough

40

Not
Used


48

Not
Used


56

Not
Used


64

INITIATING AUTO-CYCLE MODE

  1. Set AUTO-UP/ MANUAL-DOWN switch to AUTO-UP and depress ADVANCE pushbutton. Test 04 is indicated in Credit display and Function 00 in Match Display.
  2. Set switch to MANUAL-DOWN and depress ADVANCE to indicate Function 50 in the Match Display.
  3. Set switch to AUTO-UP and operate Credit button to indicate 15 in Player I Display.
  4. Depress ADVANCE pushbutton to start Auto-Cycle mode. Each cycle of this mode sequences thru the Display Digits Test, Sound Test (00), Lamp Test (01), and Solenoid test (02).
  5. To terminate the test and return to game over, turn the game OFF and back ON.

CPU BOARD SELF-TEST

Depress the DIAGNOSTIC pushbutton on the left side of the CPU Board. The following indications are provided for a few seconds and then the game attempts to go to game over:

0 - Test Passed
1 - IC13 RAM Faulty
2 - IC16 RAM Faulty
3 - IC17 ROM 2 Faulty
4 - IC17 ROM 2 Faulty
5 - IC20 ROM I Faulty
6 - IC14 Game ROM I Faulty
7 - IC26 Game ROM 0 Faulty
8 - IC19 CMOS RAM or Memory Protect Circuit Faulty
9 - Coin-door closed, Memory Protect Circuit Faulty, or ICI9 CMOS RAM Faulty.

Note that "0" remaining after power turn-on indicates CPU Board lockup.

SOUND BOARD SELF-TEST

Depress DIAGNOSTIC pushbutton on the top of the Sound Board. Several electronic sounds should be produced and then the PHARAOH vocabulary contained in the speech ROMS is produced. The vocabulary starts with the first word in 5T-5041(IC7), sequences through all words or partial words in that chip, all words or partial words in 5T-5042(IC5),5T-5043(IC6), and 5T-5044(IC4). Finally, certain composite words are produced. This sequence is repeated until the game is turned OFF and back ON.
Vocabulary         Located in ROM          Composite Words

Enter               5T 5041(IC7)                Dare              IC4
The                 5T 5041                     You               IC4/lC7
Tomb                5T 5041                     Enter             IC7
Hol...              5T 5041                     The Tomb          IC7
Treasure            5T 5041 and ST 5042 (IC5)   Of                IC5
Of                  5T 5042                     Mighty            IC6/lC4
...ARAOH            5T 5042                     PHARAOH's         IC6/lC5
Cobras              5T-5043 and 5T-5043(IC6)    Hidden            IC4/lC7
F...                5T 5043                     Chamber           IC6
Hail                5T-5043                     May               IC6
...D                5T-5043                     Return            IC4/lC7
Chamb...            5T-5043                     To                IC7
Bew...              5T-5043                     Treasure          IC7/lC5
M...                5T-5043                     Beware            IC6/IC5
Mighty              5T-5043 and 5T-5044(IC4)    Cobras            IC5/lC6
Dare                5T-5044                     Behold            IC6/IC7/IC6
Y...                5T-5044                     Failed            IC6
WH...               5T-5044                     Doomed            IC4/IC7/IC6
HID                 5T-5044                     RA                IC4
RE...               5T-5044                     Hail              IC6
RA                  5T-5044                     Who               IC4/lC7
D...                5T-5044

HTML conversion by GameArchive(www.gamearchive.com)
