QTY 1 INSTRUCTION SHEETS PM00135
QTY 2 2 3/4" RUBBER PN RB00108-11
QTY 6 #8 SCREW MINI POST PN SM00151
QTY 3 MYLAR TEMPLATES
QTY 1 PLUNGER/LINK/CLAMP/ACTUATOR A-00549-L
QTY 1 PLUNGER/LINK/CLAMP/ACTUATOR A-00549-R
* POSITION #1.
1. REMOVE FRONT SCREW, POST & WASHERS OFF THE FRONT OF PLASTIC RAMP OVER THE LOWER LEFT SLINGSHOT.
2. REMOVE THE 2 NUTS OFF OF THE SLINGSHOT PLASTIC PN AW00123-9.
3. REMOVE 3" RUBBER RING AND DISCARD.
4. SLIDE THE LOWER LEFT SLINGSHOT TEMPLATE IN POSITION, ALIGNING THE EDGE OF THE THREE HOLES IN THE PLAYFIELD WITH THE BLACK LINE OF THE TEMPLATE.
5. USING A CENTER PUNCH MARK THE PLAYFIELD OVER THE 2 X’s.
6. DRILL THE TWO HOLES WITH A 2mm 1/16" DRILL.
7. INSTALL NEW POST PN SM00151 IN THE TWO HOLES NEAR THE SWITCH HOLES.
8. INSTALL NEW 2 3/4" RUBBER PN RB00108-11.
9. REINSTALL PLASTIC.
10. REINSTALL PLASTIC RAMP.
RETRO SLINGSHOT KIT.
* POSITION #2
1. REMOVE LOWER NUT AND TWO WASHERS OFF OF THE WIRE RAMP.
2. REMOVE THE TWO NUTS OFF OF THE PLASTIC.
3. REMOVE SLINGSHOT PLASTIC PN AW00123-8.
4. REMOVE 3" RUBBER RING AND DISCARD.
5. SLIDE THE LOWER RIGHT SLINGSHOT TEMPLATE IN POSITION, ALIGNING THE EDGE OF THE THREE HOLES IN THE PLAYFIELD WITH THE BLACK LINE OF THE TEMPLATE.
6. DRILL THE TWO HOLES WITH A 2mm 1/16" DRILL.
7. USING A CENTER PUNCH MARK THE PLAYFIELD OVER THE 2 X’s.
8. INSTALL NEW POST PN SM00151 IN THE TWO HOLES NEAR THE SWITCH HOLES.
9. INSTALL NEW 2 3/4" RUBBER PN RB00108-11.
10. REINSTALL PLASTIC.
11. REINSTALL WIRE RAMP TWO WASHERS AND NUT.
*POSITION #3
1. REMOVE THE 3 NUTS AND ONE SCREW OFF OF PLASTIC OVER STAR BUMPER UPPER PN AW0123-12, AND LOWER PN AW0123-22..
2. REMOVE PLASTIC OVER SLINGSHOT ASSEMBLY.
3. SLIDE THE UPPER SLINGSHOT TEMPLATE IN POSITION, ALIGNING THE EDGE OF THE THREE HOLES IN THE PLAYFIELD WITH THE BLACK LINE OF THE TEMPLATE.
4. USING A CENTER PUNCH MARK THE PLAYFIELD OVER THE 2 X’s
6. DRILL THE TWO HOLES WITH A 2mm 1/16" DRILL.
7. INSTALL NEW POST PN SN00151 IN THE TWO HOLES NEAR THE SWITCH HOLES.
8. REINSTALL PLASTIC.

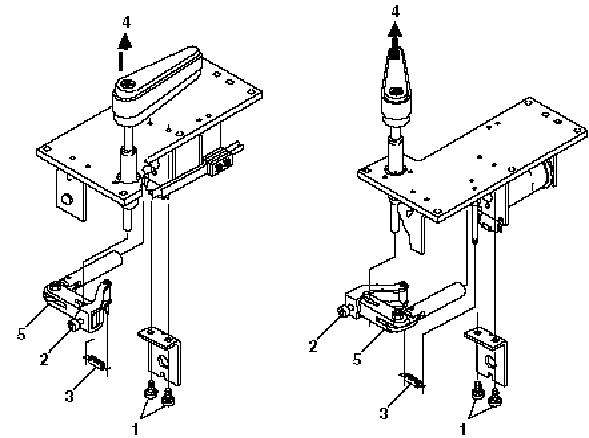

FLIPPER UPGRADE
1. REMOVE THE TWO SCREWS THAT HOLD THE BRACKET, COIL RETAINER FROM EACH FLIPPER ASSEMBLY.
2. LOOSEN THE CLAMP HOLDING SCREW.
3. DISCONNECT THE ACTUATOR SPRING.
4. FROM THE TOP OF THE PLAYFIELD, SLIDE THE FLIPPER BAT UP.
5. SLIDE THE OLD BLUE PLUNGER/LINK/CLAMP/ACTUATOR ASSEMBLY OUT OF THE GAME.
6. INSTALL THE NEW PLUNGER/LINK/CLAMP/ACTUATOR ASSEMBLY [WITH GRAY LINK]
THROUGH THE COIL RETAINER AND INTO THE COIL AND SLEEVE.
7. REINSTALL THE TWO SCREWS THAT HOLD THE BRACKET, COIL RETAINER.
8. REINSTALL THE FLIPPER PADDLE. ALIGN AND TIGHTEN THE CLAMP SCREW.
9. RECONNECT THE ACTUATOR SPRING.
10. RECHECK THE END OF STROKE SWITCH ADJUSTMENT.
